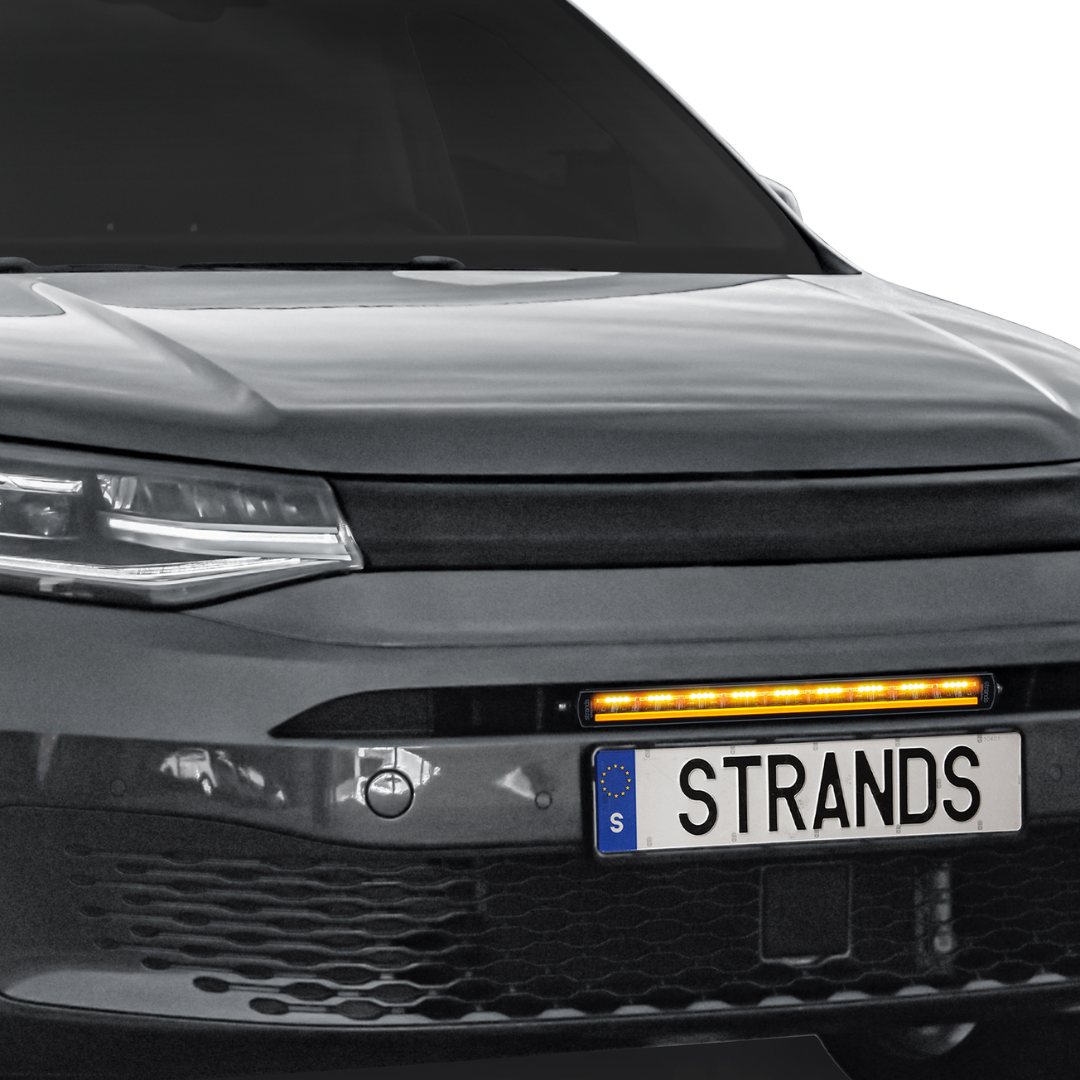

Strands – Led-Rampspaket Siberia 20″
Type of lamp LED
Type of LED Osram
PCS LED´s 18
Voltage (V DC) 9-35V DC
Theoretical effect (w) 12V 90
Theoretical effect (w) 24V 90
Consumption (w) 12V 54
Consumption (w) 24V 54
Patterns 1
Functions Driving light. Warning light
Theoretical lumen 7560
Actual lumen 2467
1 LUX @ m 414
Kelvin 6000
IP-class 67/69K
Colour housing Black
Colour lens Clear
Colour LED´s White and amber
Beam pattern Combo
Position light Yes amber and white
Connection Cable
Cable length (mm) 2500
Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Polycarbonate
Length (mm) 504.6
Depth (mm) 555
Height (mm) 45
Height including bracket (mm) 65
Operating temperature -20°C – +45°C
ADR-approved No
E-approved Yes
According to regulation ECE R7 R112 R65
Reference number 45
EMC ECE R10
